Nissan Navara D40 40mm 350kg Constant-Load Suspension Lift Kit – Pedders

This Pedders suspension kit raises the Nissan Navara D40 by approximately 40mm and is built around a heavy-duty rear leaf spring package for vehicles that carry substantial permanent weight or work regularly under load.

This listing is for one complete suspension kit.

A Constant 350kg Rear Load Is Required

The rear spring used in this kit requires a minimum constant payload of approximately 350kg. That means weight permanently carried by the vehicle, such as a service body, tools or fixed touring equipment, rather than an occasional load.

Important Information

• Do not choose this kit for an empty or lightly loaded D40. Without the required permanent load, the rear suspension may sit too high and ride excessively firmly.
• The components are supplied separately, not as pre-assembled front struts.
• A suspension kit does not increase the vehicle’s plated payload, axle limits or towing capacity.

Features and Benefits

• Approximately 40mm suspension lift
• Foam Cell front shock absorbers
• Raised front coil springs
• Long-travel rear Foam Cell shock absorbers
• 350kg constant-load rear leaf springs

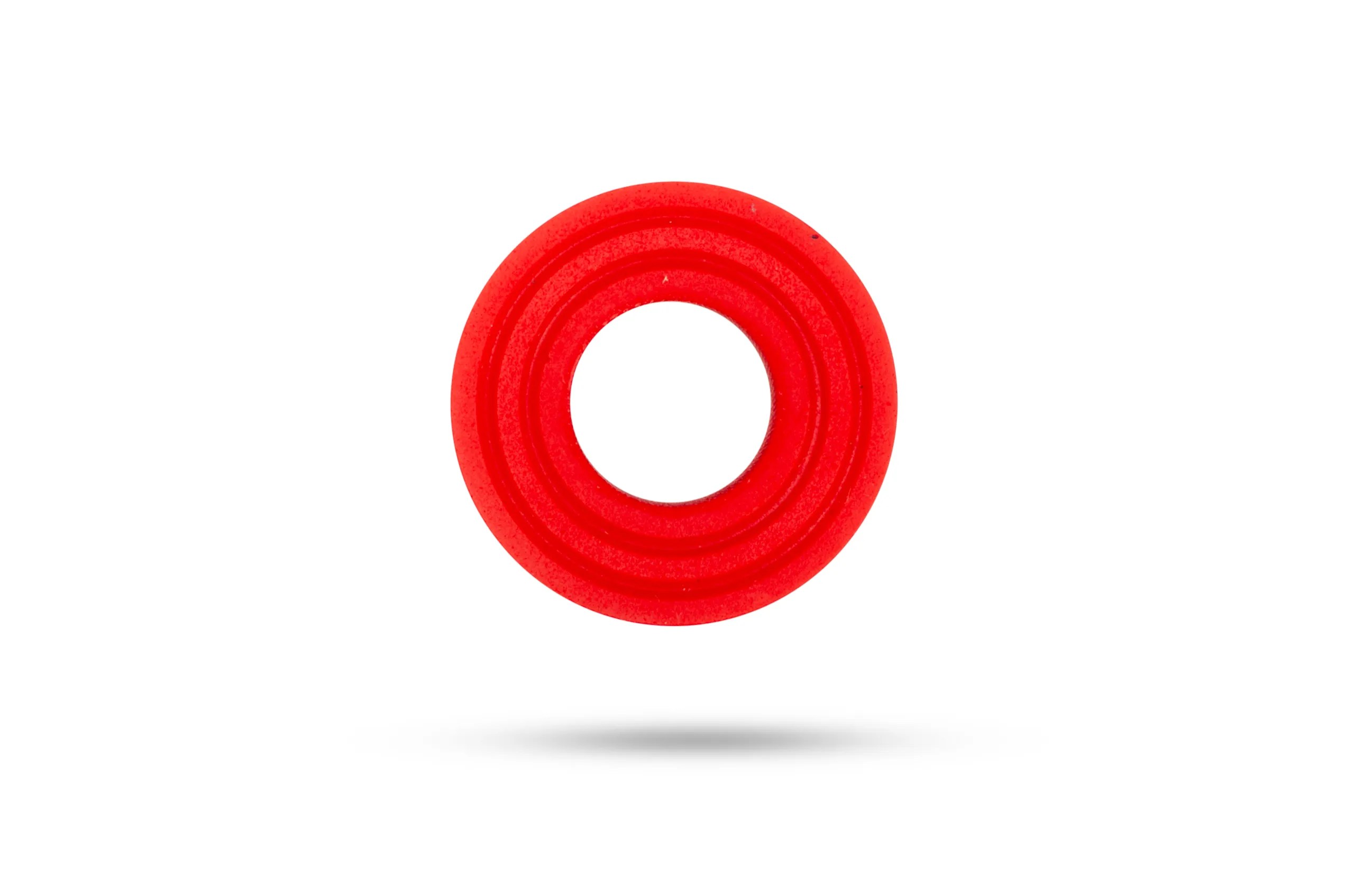

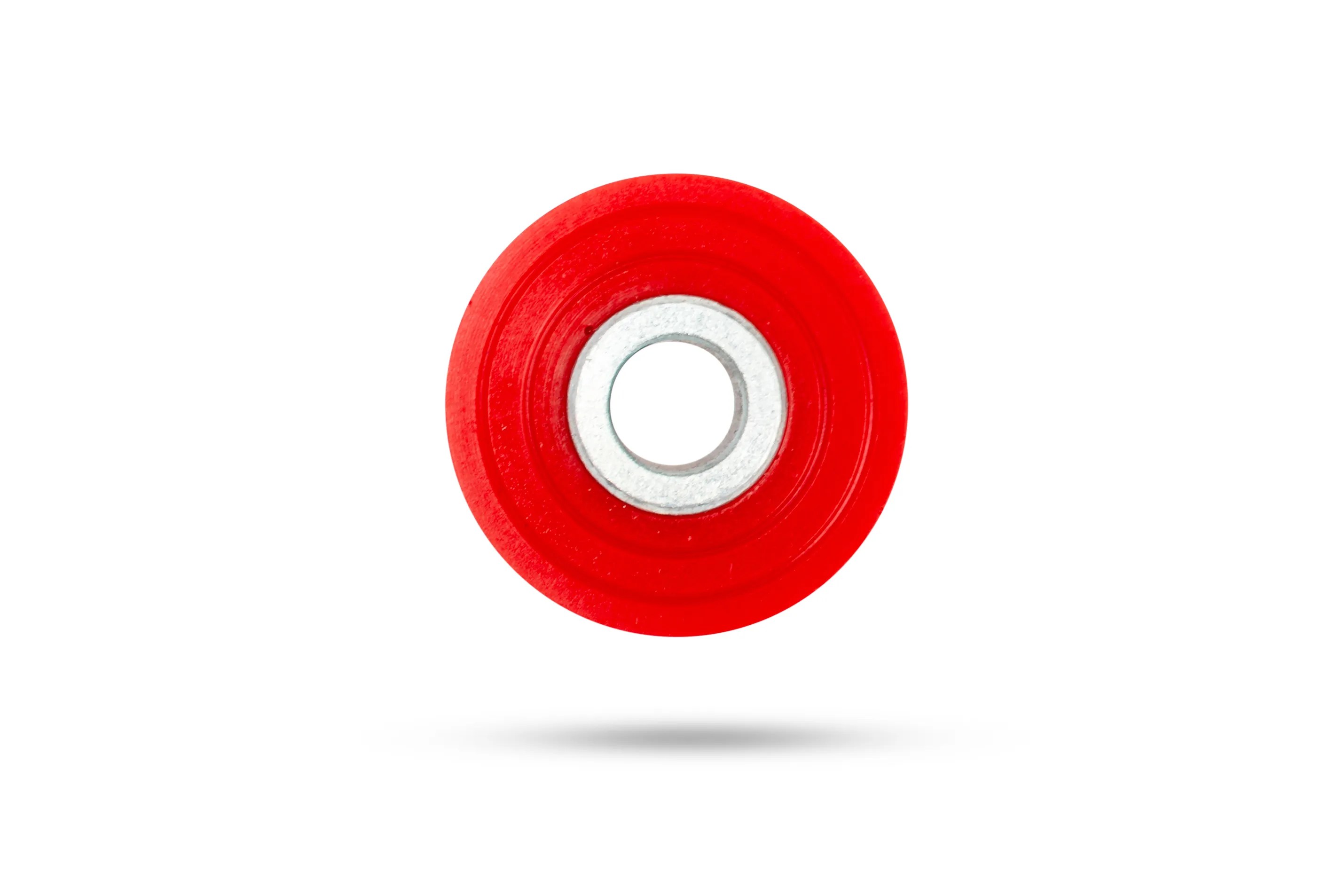

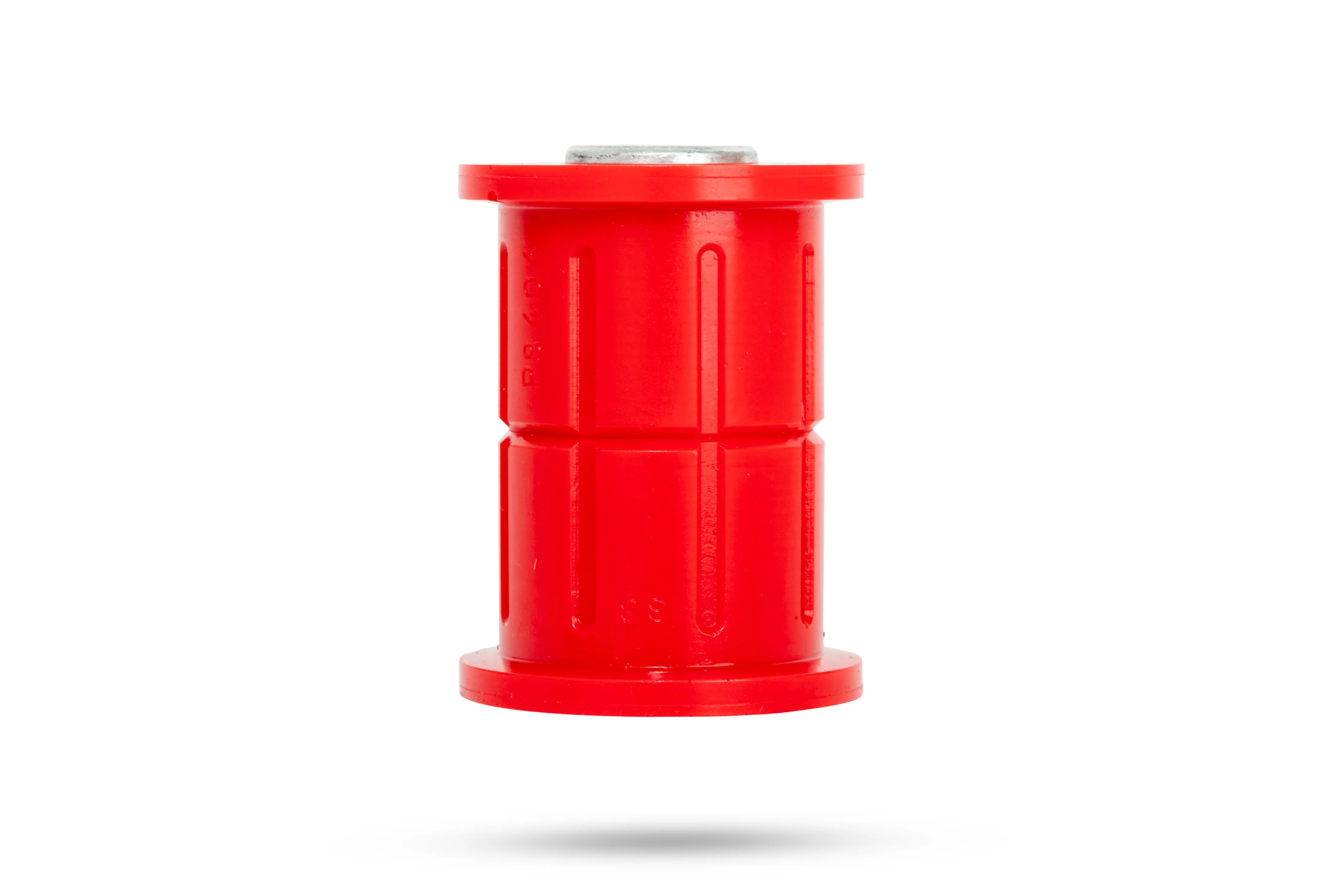

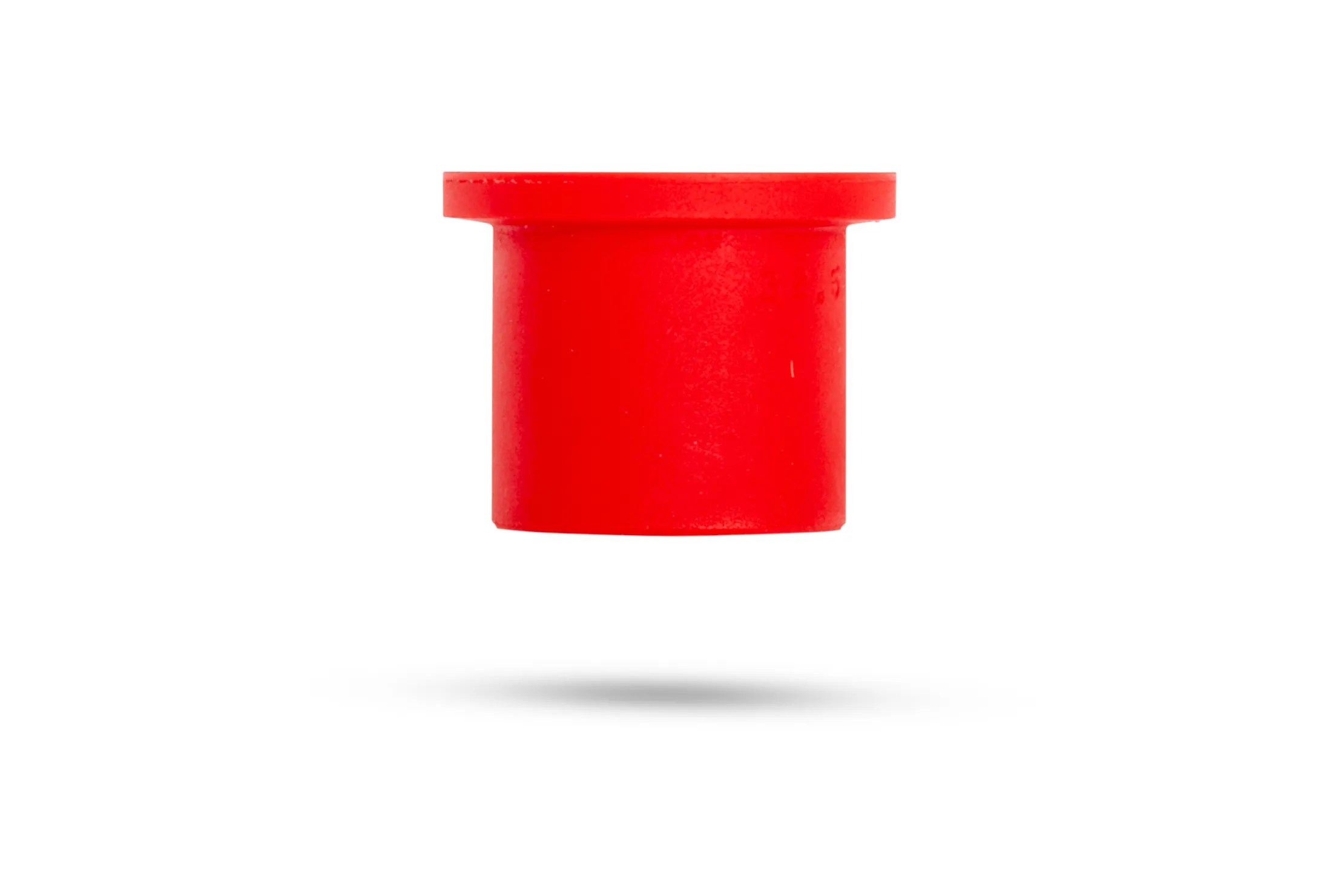

• Matched rear spring bushes and U-bolts
• Warranty: 2 years / 40,000km / 25,000 miles, subject to Pedders’ warranty terms

Vehicle Compatibility

• Nissan Navara D40
• 2005 to 2015 Pedders catalogue application
• Standard D40 2WD and 4WD leaf-over-axle models

Technical Specifications

• Manufacturer part number: 803149
• Position: front and rear suspension
• Quantity: one complete suspension kit
• Weight: 85.68kg
• Approximate lift: 40mm
• Minimum constant rear payload: 350kg
• Front spring: 280075
• Front shock: 154307
• Rear spring: 6291
• Rear shock: 151211LT

Installation and Checks

Professional installation is required. The front springs and shock absorbers must be assembled safely, all bushes and U-bolts must be fitted and tightened correctly, and the vehicle must receive a wheel alignment and headlight-aim check afterwards.

If you are unsure about build origin, existing suspension height or the component fitted to your vehicle, confirm those details before ordering. Product photographs should be used as a guide alongside the manufacturer part number and technical notes.
